Rotary Kiln

Rotary Kiln

Get Price

Email:sales@shibochina.com

50-960mm Length
180-10000t/h Processing Capacity

PRODUCT INTRODUCTION

Hot-sale Models and Capacity of Rotary Kiln

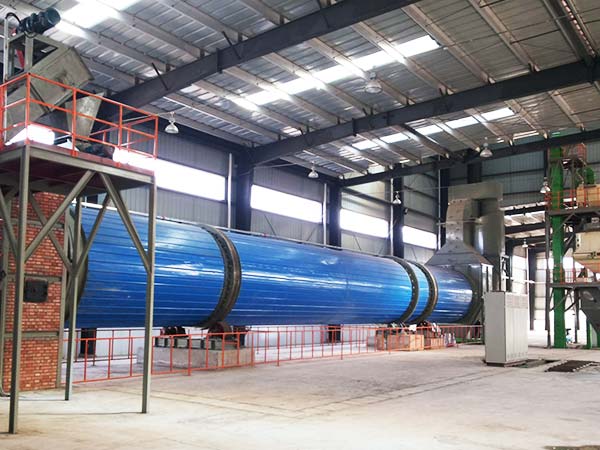

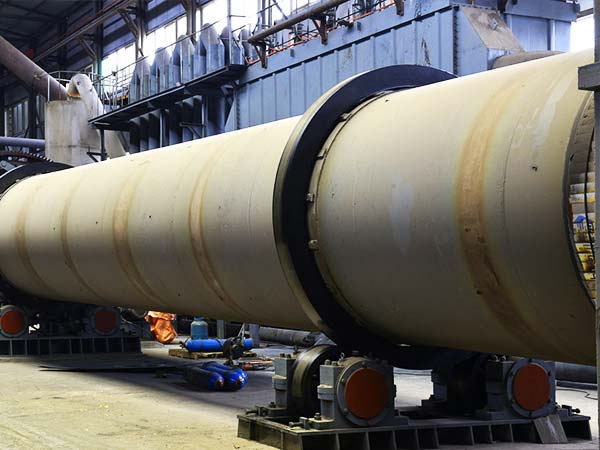

Rotary Kiln is commonly used for heat processing of minerals and aggregates, and it is important to maintain a uniform product temperature at the kiln entry, mid zone, and discharge.

Rotary Kiln

φ1.8x26,φ2.2x45, φ2.5x60, φ3.2x52,φ4.2x60m are the hot-sale models.

Production capacity can reach 72-240 t/h, and the output size is depending on the materials.

Rotary kiln can process iron ore,copper ore,zinc ore,chromium ore,cement,limestone,dolomite,etc., which is widely used in construction, metallurgy, mining,cement and so on.

Rotary Kiln

Get the latest price list

1. Just leave us your email, or whatsapp, we send the latest price list to you. Whenever, 7X24 hours online service is waiting for you.
2. Tell us your requirement, then we prepare the quotation for you at once, including the cheap price and good quality.
3. Just compare with the other companies, our company will not let you down.

TECHNICAL SPECIFICATIONS

Product Specification Capacity(t/d) Rotation speed(r/min)
Φ2.5×40 180 0.44-2.44
Φ2.5×50 200 0.62-1.86
Φ2.5×54 280 0.48-1.45
Φ2.7×42 320 0.10-1.52
Φ2.8×44 450 0.437-2.18
Φ3.0×45 500 0.5-2.47
Φ3.0×48 700 0.6-3.48
Φ3.0×60 800 0.3-2
Φ3.2×50 1000 0.6-3
Φ3.3×52 1300 0.266-2.66
Φ3.5×54 1500 0.55-3.4
Φ3.6×70 1800 0.25-1.25
Φ4.0×56 2300 0.41-4.07
Φ4.0×60 2500 0.396-3.96
Φ4.2×60 2750 0.41-4.07
Φ4.3×60 3200 0.396-3.96
Φ4.5×66 4000 0.41-4.1
Φ4.7×74 4500 0.35-4
Φ4.8×74 5000 0.396-3.96
Φ5.0×74 6000 0.35-4
Φ5.6×87 8000 Max4.23
Φ6.0×95 10000 Max5

Over 40 years of production experience

SPOM specializes in the manufacture of aggregate aggregate solutions, grinding equipment and mobile stations. Customers are located in more than 120 countries and regions around the world.
